AXI Model Motors Gold Line 2808/20 RC Hobby Outrunner Brushless Motor OM744
Roll over image to zoom in
USD66.70USD92.90 (-28%)

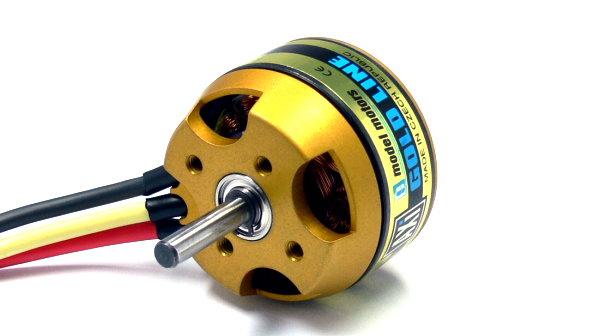

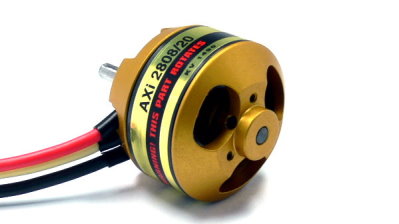

The AXI Model Motors Gold Line 2808/20 RC Hobby Outrunner Brushless Motor OM744 is a high-performance motor designed for use in remote-controlled aircraft. With a maximum power output of 650 watts, this motor is capable of providing plenty of power for heavy loads and high-speed flight. The motor features a precision-engineered outrunner design, with a KV rating of 840. This means that it can spin quickly and efficiently, providing the power needed for a wide range of aircraft types. The motor is also built to last, with a durable aluminum casing and high-quality components. To help keep the motor running smoothly, even under heavy loads, the AXI Model Motors Gold Line 2808/20 RC Hobby Outrunner Brushless Motor OM744 features a built-in cooling fan. This helps to dissipate heat and prolong the life of the motor. The motor is compatible with a wide range of propellers, allowing users to customize their aircraft to their specific needs. Overall, the AXI Model Motors Gold Line 2808/20 RC Hobby Outrunner Brushless Motor OM744 is a high-quality motor that provides plenty of power and reliable performance for a wide range of remote-controlled aircraft. AXI Model Motors Gold Line 2808/20 RC Hobby Outrunner Brushless Motor OM744. This is 100% Brand new item and we can ship this item to worldwide.
Introduction
High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 4mm diameter shaft and is supported by two ball bearings. Due to it’s high torque characteristics this motor is capable of turning large propellers with a high level of efficiency and without the need for a gearbox. A new feature in the AXI design is a provision for radial mounting (see picture). The optional radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.
Motor Nomenclature
Electric motors manufactured by Modelmotors are marked with name and numbers with slash. Name means type of motor (eg.: AXI – brushless 14-pole outrunner, MiniAC – brushless two-pole inrunner). First two numbers mean diameter of stator and next two numbers lenght of stator in mm. Simplified the bigger diameter and lenght the bigger power of motor. The number behind the slash is winding number. The lower winding number the higher RPM and current capacity.?
Specifications
- No. of cells: 6 – 10 NiCD, 2 – 3 Li-Poly
- RPM/V: 1490
- Max. efficiency: 80%
- Max. efficiency current: 10 – 15A (>75%) 75%) >
- Current capacity: 22A / 60s
- No load current: 1.3A
- Internal Resistance: 105m ohm

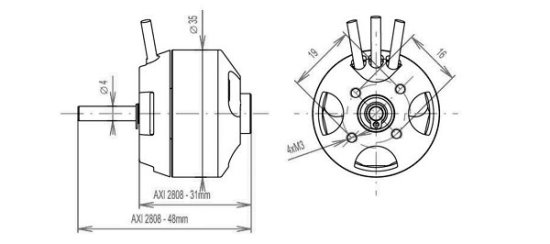

- Dimensions (Diameter x Length): 35 x 31mm
- Shaft diameter: 4mm
- Weight with cables: 76g
Package Included
- 1 x AXI 2808/20 Outrunner Brushless Motor (with manual)
Additional information
| Weight | 152 g |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
