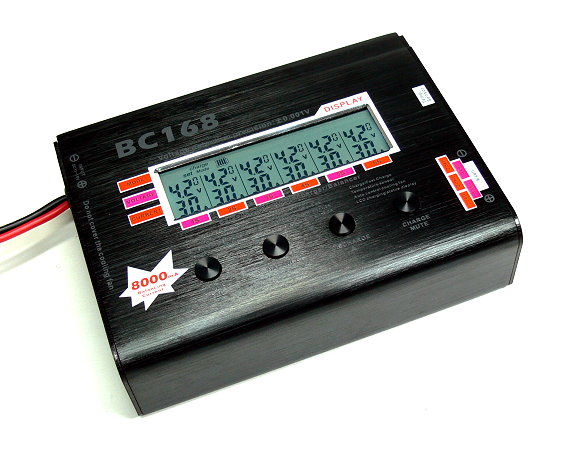

BC168 RC Model Super Speed Li-ion Li-Polymer Li-Fe Hobby Balance Charger BC016

Specifications
Input Voltage: 11 – 15V DC
Input Wattage: 250W
Charge Power: 200W (33W x 6Cells)
Discharger Power: 25.2W (4.2W x 6Cells)
Balance Power: 200W (33W x 6Cells)
Charger Voltage Adjustable Range: 1.50V – 4.20V (Pre-set up 4.2V)
Charger Current Adjustable Range: 0.1A -8.0A (Pre-set up 1.0A)
Charge Temperature Alarm Adjustable Range: 20 – 80 Degree C (Pre-set up 80 Degree C)
Discharge Voltage Adjustable Range: 2.00V – 4.20V (Pre-set up 3.80V)
Discharge Current Adjustable Range: 0.1A – 1.0A (Pre-set up 1.0A)
Balance Voltage Adjustable Range: 2.00V – 4.20V (Pre-set up 3.80V)
Balance Current Adjustable Range: 0.1A – 8.0A (Pre-set up 1.0A)
Charge Voltage Precision: +/-0.001V
Discharge Voltage Precision: +/-0.001V
Balance Voltage Precision: +/-0.001V
Charge Shift Efficiency: =>80%
Charger Consumed Power: =1.8W (12V 0.15A)
Suitable Battery Type: 1 – 6Cells (Working Well with LiPo / Lilo / Life)
Weight: 750g
Dimension: 165 x 123 x 52mm

Product Function Characteristic
The charger is design for Li-polymer and Lithium Cell. Available to charge, balance, discharge, measure the series batteries accurately.

The charger use 4 button controls all function. 3 of the buttons are shortcut key, only need to press and then can finish charge, fast charge, balance, discharge all functions.

This charger use high-precision battery detects PCB, the voltage control accuracy reach +/- 0.001V. the current control accuracy reach +/-0.1A based on any situation of the battery. Once finished the discharge, the voltage tolerance of battery will be =0.002V.

There is no conflit between each circuit. The power can maintain 8A output, all voltage , current will be display accordingly.

Well designed for protection of whole circuit. The product will be stop working if there is exceed or overload.

Automatic heat protection and thermal protection designed.

The rate voltage for DC is 11V ?15V when input voltage less 11V or over 15V, the charger will be under protection status and then indicate the error of wrong input voltage.

This charger working with free option input current. The current formula as followings:

Maximum Power / Input Voltage = input current

Different Battery Parameter

Battery Standard Voltage: 3.7V/Cell (LiPo), 3.6V/Cell (Lilo), 3.3V/Cell (LiFe)

Maximum Charge Voltage: 4.2V/Cell (LiPo), 4.1V/Cell (Lilo), 3.6V/Cell (LiFe)

Super Speed Charge Current: 1C (LiPo), 1C (Lilo), 4C (LiFe)
Discharge Cut-off Voltage: >3.0V/Cell (LiPo), >2.5V/Cell (Lilo), >2.0V/Cell (LiFe)

Item Included: 1 x BC168 RC Model Super Speed Li-ion Li-Polymer Li-Fe Hobby Balance Charger BC016
