HOBBYWING TEKMODEL RC Model ESC Program Card for R/C Hobby Car PC550

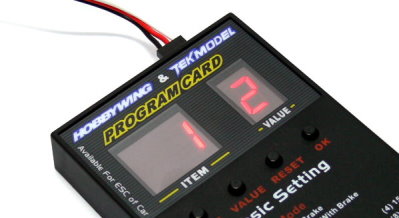

Program Card Introduction
Thank you for interesting the program card for the car ESC (Electronic Speed Controller). The program card has a friendly user interface, so you can easily set programmable parameters of the ESC with this device. It is pocket- sized, so you can bring it to the racing field conveniently.
Specifications
- Dimensions: 88mm x 58mm x 14mm
- Suitable ESC: HOBBYWING / TEKMODEL
Programmable Items
Running Model
‘Forward with brake’ mode, provides forward and brake functions.
‘Forward / Reverse with brake’ mode, provides forward, backward and brake functions.
Drag Brake Force
When the throttle stick is moved from the forward range to the neutral rang, a bit brake force happened. That simulates the slight Braking effect of a neutral brushed motor while coasting. This has 8 options, from 0% to 40% with the increased drag brake force.
Low Voltage Cut-Off
The function is mainly to prevent the lithium battery pack from over discharging. When using lithium battery pack, please set the suitable value for low-voltage protection as you like.
Start Mode
Soft / Normal / Aggressive / Very Aggressive
Maximum Brake Force
It refers to the force when the throttle stick is located at the top point of the backward zone. A very large brake force can shorten the brake time, but it may damage the gears. This item has 4 options from 25% to 100% with the increased maximum brake force.
Maximum Reverse Force
Different value makes different reverse speed. This item has 4 options from 25% to 100% with increased maximum reverse force.
Initial Brake Force
It is also so-called ‘minimum brake force’ and it refers to the force when the throttle stick is located at the initial position of the backward zone.
Throttle Neutral Range
This item is used to set the throttle neutral range, so that can be compatible for habit of different of user. This item has 3 options from 6% to 12% with the increased neutral range.
Timing
This parameter is ONLY available for sensorless brushless motor. Different timing value is compatible for the sensorless brushless of different structures or features. This item has 8 options, from 0 degree to 26.25 degree.
Over-Heat Protect:
If the function is activated, the output power will be cut-off when the temperature of ESC is higher than a particular value.
Package Included
If the function is activated, the output power will be cut-off when the temperature of ESC is higher than a particular value.
Package Included
- 1 x HOBBYWING Model Program Card (with English Manual)
Brand
HOBBYWING
Additional information
Weight | 68 g |
---|---|
Dimensions | 15 × 10 × 5 cm |
